Samasz
·
Trailed mower

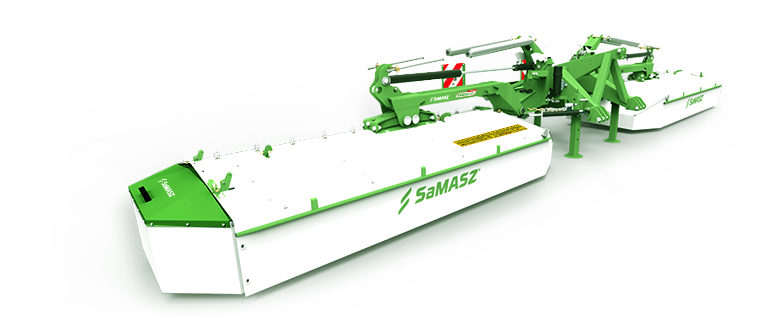

GigaCUT
2026
poland
Combining high efficiency with cost-effectiveness in the mowing process perfectly describes the GigaCUT series; these units are designed for operation on large farms and under the most demanding conditions imaginable.
Specifications
Technical Specifications
| Property | KDD 941 S | KDD 861 ST | KDD 920 W |
|---|---|---|---|
| Working width | 9,40 m | 8,60 m | 9,20 m |
| Transport width | 3 m | 3 m | 3 m |
| Transport height | 3,95 m | 3.8 m | 3.9 m |
| Swath width | 2 x ~ 2,00 - 2,70 m | 2 x ~1,55 - 2,20 m | 2 x ~1,40 - 2,20 m |
| Necessary hydraulic couplers | 3 x single acting (with panel 1 x single acting) | 1 x double acting | 3 x single acting + (with panel 1 x single acting) |
| Working capacity | 26.19 fad/h | 23.8 fad/h | 25 fad/h |
| Number of discs | 16 pcs. | 14 pcs. | 10 pcs. |
| Number of knives | 32 pcs. | 28 pcs. | 32 pcs. |
| RPM | 1000 rpm | 1000 rpm | 1000 rpm |
| 3-point hitch cat. | III | III | III |
| Power demand | from 200 | from 200 | from 180 |
| Weight | 3 226 Kg | 4 040kg | 3 320 Kg |
