soil preparation Disc
Tiger- Disc Harrow

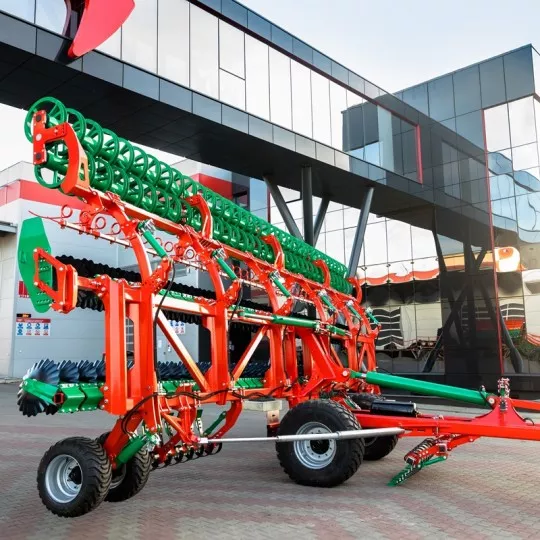

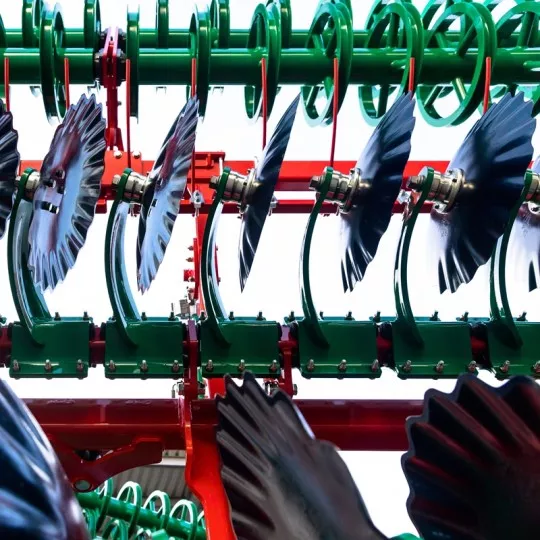

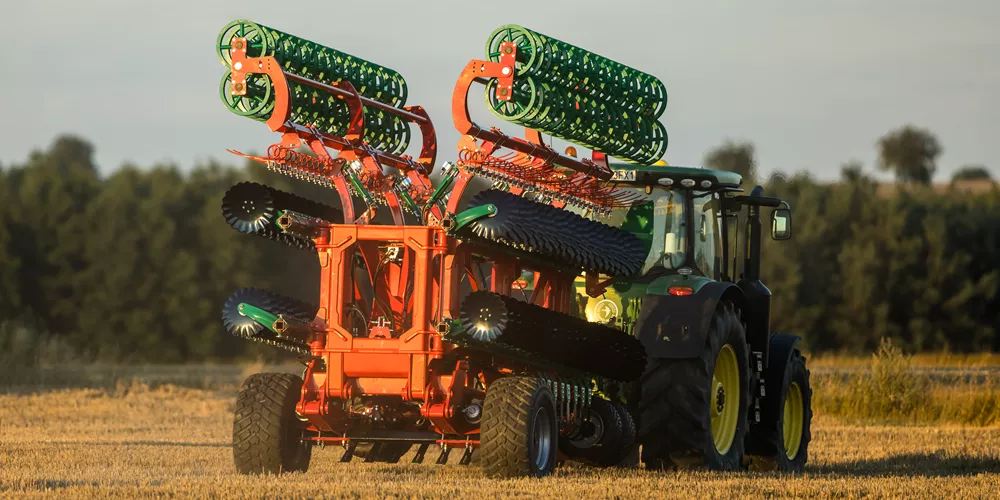

A semi-mounted agricultural implement designed for heavy-duty operations and efficient soil preparation over large areas. It features high-quality SKF hubs and offers wide working widths with a productivity rate ranging from 9.6 to 18 hectares per hour. Additionally, it is equipped with a hydraulically folding frame, a pneumatic braking system with a parking brake, and transport wheels.
Specifications
Tiger 8
| Property | Value | Unit |
|---|---|---|
| Width | 8 | m |
| Weight | 8500 | Kg |
| Power | 270-330 | hp |
| Number of Plates | 64 | pcs |
| Productivity | 22.86 – 28.57 | fed/hr |
| Max Working Depth | 14 | cm |
Tiger 10
| Property | Value | Unit |
|---|---|---|
| Width | 10 | m |
| Weight | 9500 | Kg |
| Power | 330-400 | hp |
| Number of Plates | 80 | pcs |
| Productivity | 28.57-35.71 | fed/hr |
| Max Working Depth | 14 | cm |
Tiger 12
| Property | Value | Unit |
|---|---|---|
| Width | 12 | m |
| Weight | 12500 | Kg |
| Power | 400-460 | hp |
| Number of Plates | 96 | pcs |
| Productivity | 35.71-42.86 | fed/hr |
| Max Working Depth | 14 | cm |
